IJK-000 Fuel Injector Service Kit

Category: Brand:
Description
Additional information

Overview

This Fuel Injector Service Kit contains the most common components required to rebuild leading brand fuel injectors.

Both “ top feed” and” side feed “ EFI Injectors require quality service and repair components to ensure correct fuel flow through the injectors, and for safety reasons the long term continuous sealing of fuel under pressure through a range of extreme temperatures and operating conditions. For this reason new seals must be fitted whenever an injector is removed from its sealing surface. The renewal of any “buffer” rubbers is also required to ensure the correct seating and location of the injector.

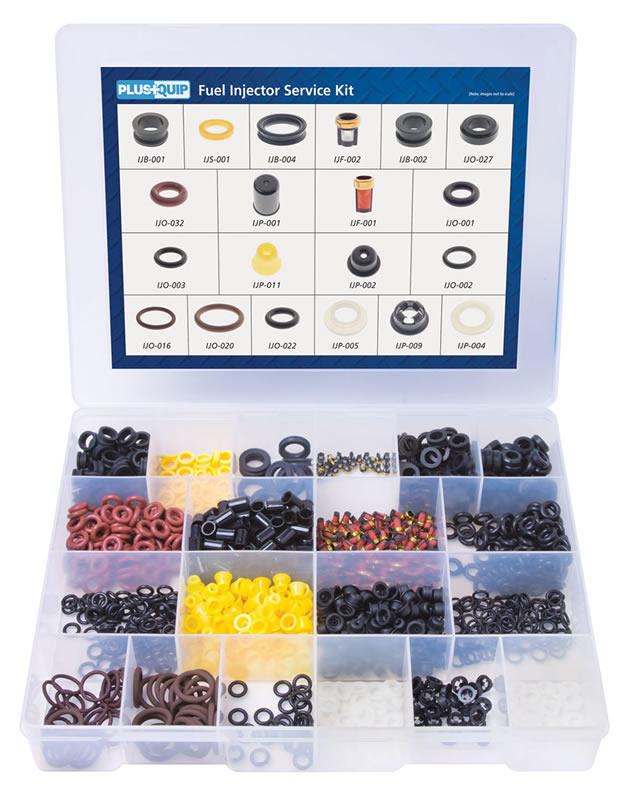

IJK-000 Fuel Injector Service Kit This kit contains 20 different part numbers, 1,285 individual components including buffer seals, body seals, filters, space washers, pintle caps, lower seals, as well as upper and lower O-rings.

IJK-000 Fuel Injector Service Kit

Specifications

Dimensions:
Length: 355mm
Width: 275mm
Height: 55mm
Weight: 1.32kg

The Fuel Injector Service Kit contains:

  • Buffer seals suitable for Denso, Bosch, Aisan, Hitachi, JECS and SARD injectors.
  • Body Seals for Bosch, Denso and JECS injectors
  • Filters for Denso, Bosch, Aisan, Delphi, JECS, SARD, Lucas, Keihin and Siemens injectors.
  • Upper O-Rings for Denso, Bosch, JECS, SARD, Aisan, Siemens, Hitachi, Delphi, Lucas, Keihin, Weber and Magneti Marelli injectors.
  • Lower O-Rings for Denso, Bosch, JECS, SARD, Hitachi, Aisan, Lucas, Keihin, Weber and Magneti Marelli injectors.
  • Lower seals for Denso, Bosch, JECS, SARD, Siemens, Hitachi and Delphi injectors.
  • Pintle Caps for Denso, Bosch EV1, Bosch EV6 and JECS injectors.
  • Spacer washers for Bosch EV1 injectors.

IJK-000 Fuel Injector Service Kit

Refill Parts

A full range of refill components and other parts are also available for the Fuel Injector Service Kit.

Part Number Description and Refill Pack Quantity
IJB-001 INJECTOR BUFFER SEAL – PK 10
IJB-002 INJECTOR BUFFER SEAL – PK 10
IJB-003 GM INJECTOR BODY SEAL – PK 10
IJB-004 TOYOTA INJECTOR BODY SEAL – PK 10
IJB-005 INJECTOR BUFFER SEAL – PK 10
IJB-006 NISSAN INJECTOR BUFFER SEAL – PK 10
IJB-007 INJECTOR BODY SEAL – PK 10
IJB-008 HONDA INJECTOR BUFFER SEAL – PK 10
IJB-009 VOLVO K-JET INJECTOR SEAL – PK 10
IJB-010 INJECTOR BODY SEAL – PK 10
IJB-011 MERC. K-JET INJECTOR SEAL – PK 10
IJB-012 BMW K-JET INJECTOR SEAL – PK 10
IJB-013 SIDE FEED INJECTOR BUFFER SEAL – PK 10
IJB-014 SIDE FEED INJECTOR BUFFER SEAL – PK 10
IJB-015 MERC. K-JET INJECTOR SEAL – PK 10
IJB-016 MERC. K-JET INJECTOR SEAL – PK 10
IJC-001 INJECTOR CLIP – PK 10
IJF-001 UNIVERSAL INJECTOR FILTER BASKET – PK 10
IJF-002 SHORT INJECTOR FILTER BASKET – PK 10
IJF-003 WEBER STYLE INJECTOR FILTER BASKET – PK 10
IJF-004 HITACHI STYLE INJECTOR FILTER BASKET – PK 10
IJF-005 HONDA STYLE INJECTOR FILTER BASKET – PK 10

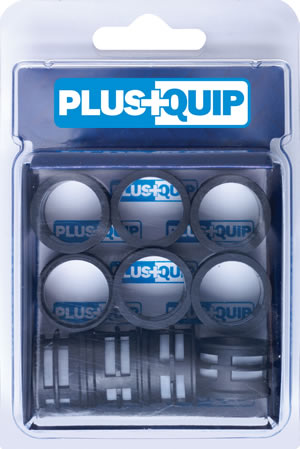

IJF-006 FORD TBI INJECTOR FILTER SCREEN – PK 10
IJF-007 NISSAN SIDE FEED INJECTOR FILTER SCREEN – PK 10
IJF-008 GM TBI INJECTOR UPPER FILTER SCREEN – PK 10
IJF-009 GM TBI INJECTOR LOWER FILTER SCREEN – PK 10
IJO-001 UNIVERSAL 14mm INJECTOR O’RING – PK 10
IJO-002 UPPER INJECTOR O’RING – PK 10
IJO-003 UPPER INJECTOR O’RING – PK 10
IJO-004 UPPER INJECTOR O’RING – PK 10
IJO-005 K-JET INJECTOR SEAL – PK 10
IJO-006 LOWER INJECTOR O’RING – PK 10
IJO-007 FORD TBI INJECTOR TOP O’RING – PK 10
IJO-008 UPPER INJECTOR O’RING – PK 10
IJO-009 UPPER INJECTOR O’RING – PK 10
IJO-010 FORD TBI INJECTOR BOTTOM O’RING – PK 10
IJO-011 LOWER INJECTOR O’RING – PK 10
IJO-012 LOWER INJECTOR O’RING – PK 10
IJO-013 UPPER INJECTOR O’RING – PK 10
IJO-014 GM TBI INJECTOR LOWER O’RING – PK 10
IJO-015 MICRA SIDE FEED UPPER INJECTOR O’RING – PK 10
IJO-016 MAZDA SIDE FEED UPPER INJECTOR O’RING – PK 10
IJO-017 TOYOTA SIDE FEED LOWER INJECTOR O’RING – PK 10
IJO-018 TOYOTA SIDE FEED UPPER INJECTOR O’RING – PK 10
IJO-019 NISSAN SIDE FEED LOWER INJECTOR O’RING – PK 10
IJO-020 NISSAN SIDE FEED UPPER INJECTOR O’RING – PK 10
IJO-021 MICRA SIDE FEED LOWER INJECTOR O’RING – PK 10
IJO-022 NISSAN SIDE FEED LOWER INJECTOR O’RING – PK 10
IJO-023 NISSAN SIDE FEED UPPER INJECTOR O’RING – PK 10
IJO-024 GM TBI INJECTOR UPPER O’RING – PK 10
IJO-025 LOWER INJECTOR O’RING – PK 10
IJO-026 LOWER INJECTOR O’RING – PK 10
IJO-027 LOWER INJECTOR SEAL – PK 10
IJO-028 LOWER INJECTOR SEAL – PK 10
IJO-029 LOWER INJECTOR SEAL – PK 10
IJO-030 LOWER INJECTOR SEAL – PK 10
IJO-031 LOWER INJECTOR SEAL – PK 10
IJO-032 LOWER INJECTOR SEAL – PK 10
IJO-033 LOWER INJECTOR SEAL – PK 10
IJO-034 FUEL PRESS. REG, O’RING – PK 10
IJO-035 DIESEL INJECTOR SEAT
IJO-036 DIESEL INJECTOR SEAT
IJO-037 DIESEL INJECTOR O RING
IJO-038 DIESEL INJECTOR SEAT
IJO-039 DIESEL INJECTOR O RING
IJO-040 DIESEL INJECTOR SEAT
IJO-041 DIESEL INJECTOR SEAT
IJO-042 DIESEL INJECTOR SEAT

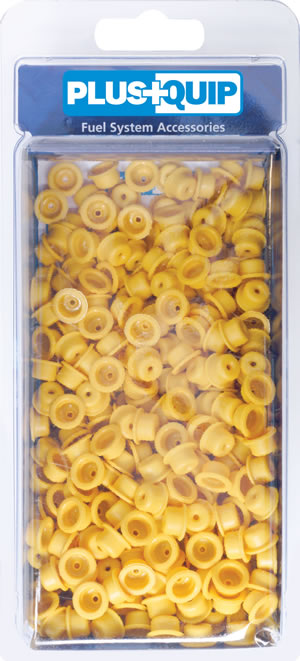

IJP-001 BOSCH / DENSO STYLE PINTLE CAP – PK 10
IJP-002 UNIVERSAL BOSCH STYLE PINTLE CAP – PK 10
IJP-003 BOSCH UNIVERSAL PINTLE CAP – PK 10
IJP-004 LATE BOSCH STYLE PINTLE CAP / RETAINER – PK 10
IJP-005 LATE BOSCH STYLE PINTLE CAP / RETAINER – PK 10
IJP-006 DELPHI INJECTOR PINTLE CAP – PK 10
IJP-007 UNIVERSAL BOSCH STYLE PINTLE CAP – PK 10
IJP-008 LATE BOSCH STYLE PINTLE CAP / RETAINER – PK 10
IJP-009 SIDE FEED INJECTOR PINTLE CAP – PK 10
IJP-010 GM / TOYOTA PINTLE CAP – PK 10
IJP-011 UNIVERSAL BOSCH STYLE PINTLE CAP – PK 10
IJP-012 LATE DENSO STYLE PINTLE CAP – PK 10
IJP-013 BOSCH CNG INJECTOR PINTLE CAP – PK 10
IJP-014 TBI INJECTOR PINTLE CAP – PK 10
IJP-015 TOYOTA PINTLE CAP – PK 10
IJP-016 UNIVERSAL BOSCH STYLE PINTLE CAP – PK 10
IJP-017 MAZDA LONG TWIN SPRAY PINTLE CAP – PK 10
IJP-018 HITACHI STYLE PINTLE CAP – PK 10
IJP-019 LATE DENSO STYLE PINTLE CAP – PK 10
IJP-020 EARLY HONDA PINTLE CAP – PK 10
IJP-021 EARLY BMW LARGE HOLE PINTLE CAP – PK 10
IJP-022 FORD / MAZ SHORT TWIN SPRAY PINTLE CAP – PK 10
IJP-023 EARLY BOSCH STYLE PINTLE CAP – PK 10
IJP-024 WEBER STYLE PINTLE CAP – PK 10
IJP-025 MAZDA SINGLE HOLE PINTLE CAP – PK 10
IJP-026 EARLY BMW SMALL HOLE PINTLE CAP – PK 10
IJP-027 LATE DENSO STYLE PINTLE CAP – PK 10
IJS-001 BOSCH INJECTOR SPACER RING – PK 10
IJS-002 HOSE TAIL INJECTOR HOSE FERRULE – PK 10

Refill components are available through specialised automotive resellers and leading automotive retailers

IJK-000 Fuel Injector Service Kit

IJK-000 Fuel Injector Service Kit

IJK-000 Fuel Injector Service Kit

Weight 1.32 kg
Dimensions 35.5 × 27.5 × 5.5 cm
