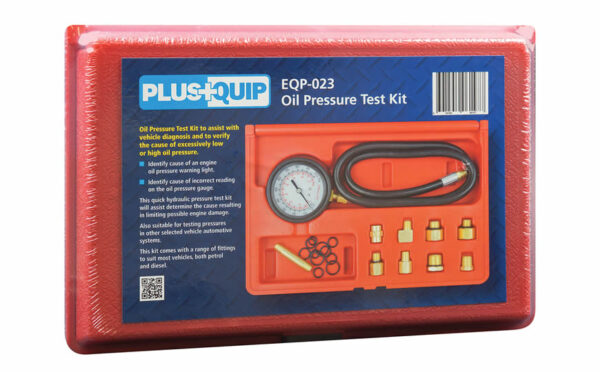

EQP-023 Oil Pressure Universal Kit

Overview

This Oil Pressure Test Kit is to assist with vehicle diagnosis and to verify the cause of excessively low or high oil pressure. This quick hydraulic pressure test kit will assist to determine the cause thus resulting in limiting possible engine damage.

This hydraulic oil pressure gauge is essential to determine the cause of an engine oil pressure warning light illuminated on the dash or an incorrect reading on the vehicle oil pressure gauge.

• Identify cause of an engine oil pressure warning light
• Identify cause of incorrect reading on the oil pressure gauge
• Pressure is displayed in both metric and imperial
• Suitable for testing pressures in other selected vehicle automotive systems
• Suitable for both petrol and diesel applications

This oil pressure gauge is and comes with a range of fittings to suit most vehicles, both petrol and diesel.

The kit housed in a sturdy casing to reduce any damage to the gauge and comes with a range of fittings to suit most vehicles.

Specifications

Dimensions
Length: 300mm
Width: 200mm
Height: 60mm
Weight: 0.85kg

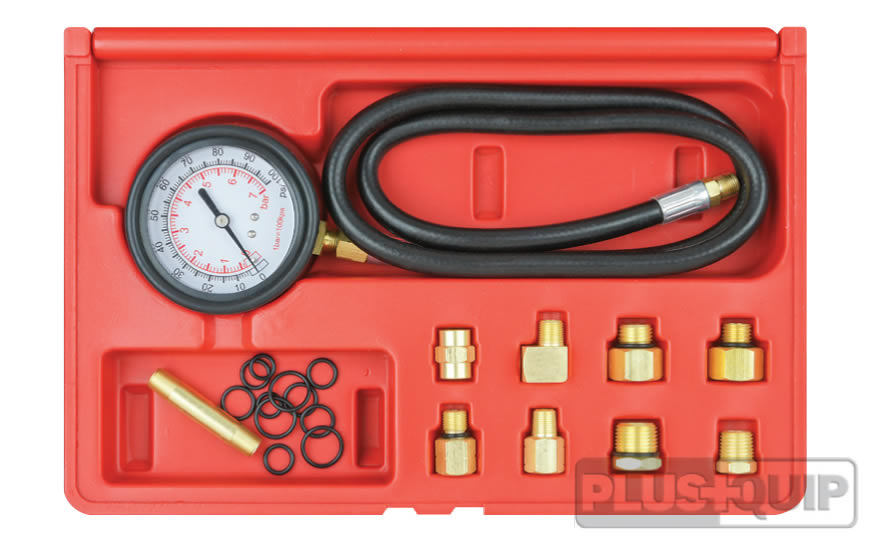

Kit Includes:

• 1-100 PSI (0-7 BAR) Gauge assembly. (with protective boot)
• Hose assembly
• Adapters:
  • 1/8/-27 to ¼-18
  • 1/8-27 to 1/28 BSPT
  • 1/8-27 to M12-1.5
  • 1/8-27 to 3/8-18
  • 1/8-27 to M10-1.0
  • 1/8-27 to M14-1.5
• Street elbow
• Coupling
• 2” large nipple
